Flexible wires
Orton has stood on top of the game with renowned wires that are internationally acclaimed. Our PVC insulated flexible wires has served the needs of industries by improving their manufacturing process. Our quality wires have found utility in different organizations, widely used as internal wiring of computer, interconnection circuits, data processing equipment, harness fabrication, appliances, motor leads etc. All available in different packages and shades, with a price that is super-affordable.
Technical details

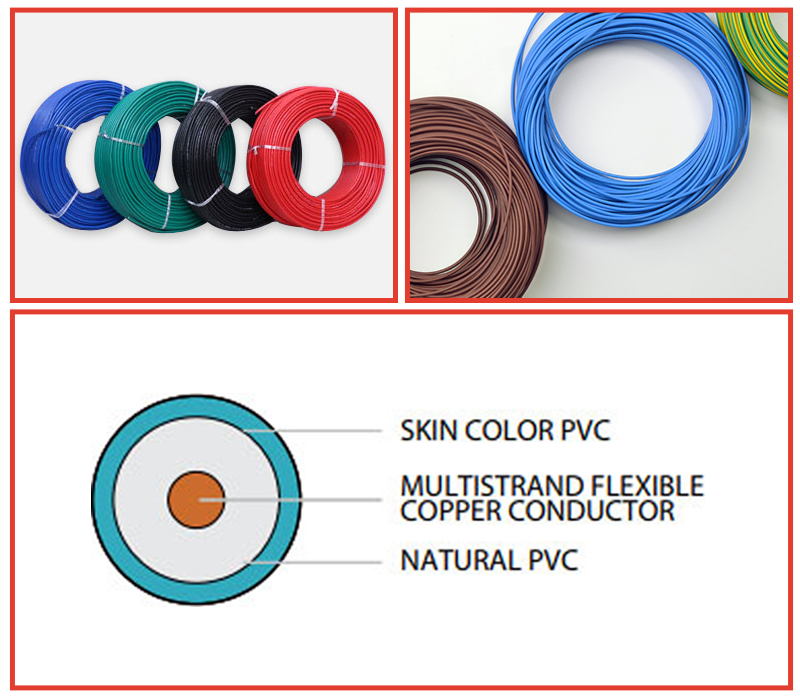

Fine stranded conductor of annealed tinned copper wire bunched together, insulation of special FR-PVC compound of insulation resistance >100M Ohms/Km. Colours available as colour code Table No. 02
Table No. 01
| S.No. | No. of Strands / Nom. dia of wire (inch) | Overall dia.(mm) | Max. Conductor Resistance ohm/km at 20Deg C. | Current Carrying capacity in amp |
|---|---|---|---|---|
| 1 | 7/.0040 | 1.20 | 301.57 | .05 |
| 2 | 7/.0048 | 1.35 | 251.57 | .51 |
| 3 | 7/.00525 | 1.35 | 180.07 | 1.5 |
| 4 | 7/.0060 | 1.60 | 135.8 | 1.6 |
| 5 | 7/.0076 | 1.65 | 84.23 | 1.9 |
| 6 | 14/.0048 | 1.70 | 105.4 | 1.8 |
| 7 | 14/.0052 | 1.75 | 90.04 | 2.5 |
| 8 | 14/.0060 | 1.85 | 67.90 | 3.5 |
| 9 | 14/.0076 | 1.90 | 42.12 | 5 |
| 10 | 23/.0052 | 2.30 | 54.78 | 4 |
| 11 | 23/.0060 | 2.35 | 41.33 | 5 |
| 12 | 23/.0076 | 2.35 | 25.64 | 8 |
| 13 | 40/.0060 | 2.8 | 24.30 | 9 |
| 14 | 40/.0076 | 3.00 | 14.74 | 15 |
| 15 | 60/.0076 | 3.70 | 9.82 | 22 |
| 16 | 70/.0076 | 3.90 | 8.20 | 24 |
| 17 | 80/.0076 | 4.10 | 7.37 | 28 |
| 18 | 100/.0076 | 4.70 | 5.70 | 33 |
Table No. 02
| Colour | Code-X | Colour | Colour |
|---|---|---|---|
| Black | 01 | blue | 07 |
| Brown | 02 | voilet | 08 |
| Red | 03 | grey | 09 |
| Orange | 04 | white | 10 |
| Yellow | 05 | pink | 11 |
| green | 06 | Sky blue | 12 |
Applications: Mostly used in a wealth applications including PCB connections, inter connection circuits, internal wiring of computer and data processing equipments,appliances, lighting, motor leads, heating, cooling equipments, harness fabrication & automotives, wiring in telecomunication systems & devices, electronics components in devices etc. (Suitable for low voltage application)
