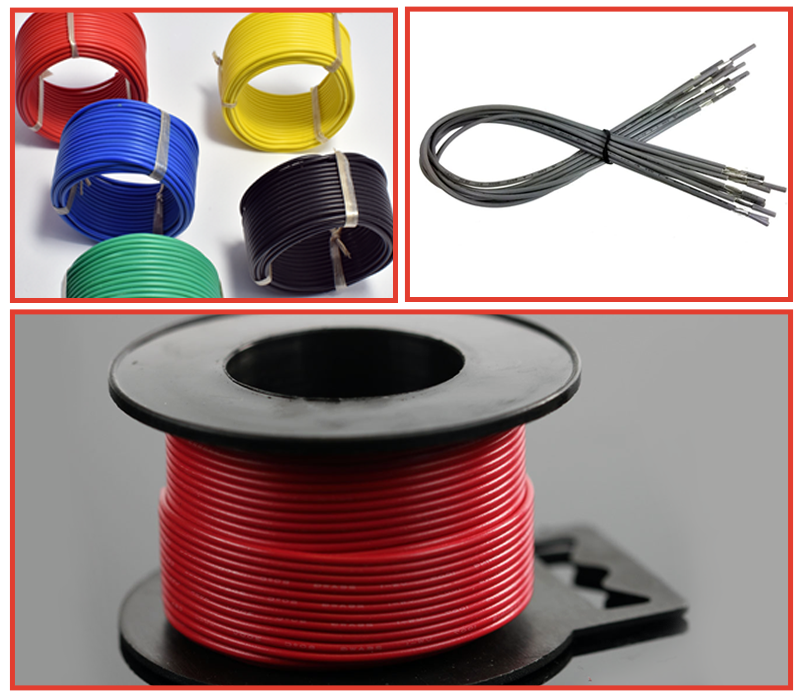

Hookup Wires

Hook Up Wires

Our hook wires are prestigious and created a name in this competitive environment. These wires are applicant of low current and voltages, less than 1000V. Our wires are known for the unmatched quality and the par strength that accompanies equipment that are enclosed.

Single conductor wire of annealed tinned copper, insulation of special PVC compound of insulation resistance > 100M Ohms/km

S.No.	No. of Strands in inches	Overall dia. in mm	Max. Conductor Resistance ohm/km at 20Deg C.	Current Carrying capacity in amp
1	1/.012	1.00	274	0.8
2	1/.014	1.15	179	1.3
3	1/.018	1.15	137	1.4
4	1/.020	1.20	108	1.5
5	1/.024	1.50	59.02	3
6	1/.026	1.70	50.42	4
7	1/.036	2.25	26.29	7

Special wires can also be made according to customer specifications with measurements that suits you best.
