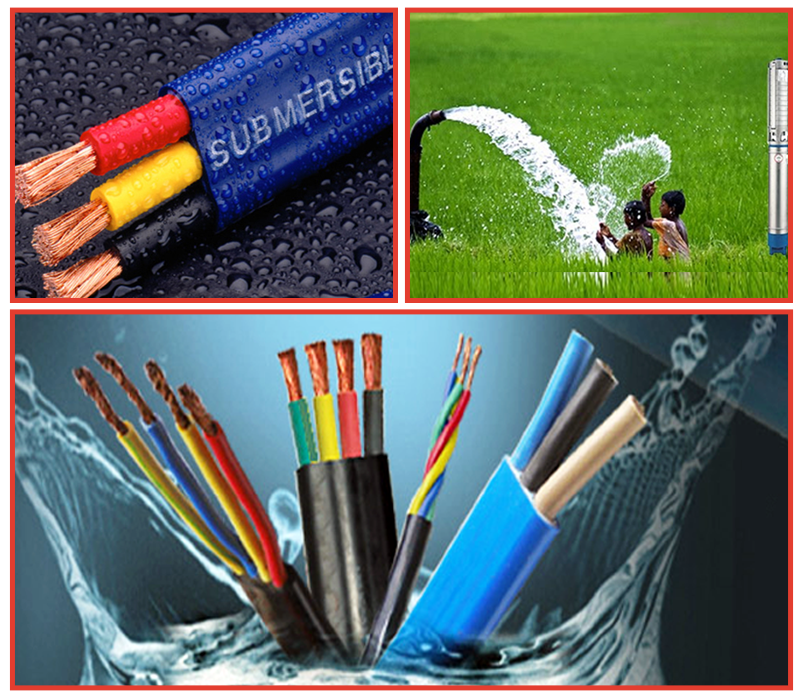

Flat cables find its utility in submersible pumps. Our flat cables are specially designed to take everything and never cracks under pressure. Widely enjoyed in the market, our high-quality flat cables conform IS 694.
Constructed with stranded bare annealed electrolytic grade copper, insulated with our noteworthy in-house PVC and top notch outer sheathing makes this a world-class product that can stand any load.
| Area (nom.) Sq. | Number & Size of Wire | Insulation Thickness (nom.) | Sheath thickness (nom.) | Width 'W' approx | Height 'H' approx | Residence at 20 deg.C (Max.) | Current carrying capacity at 400 |
|---|---|---|---|---|---|---|---|
| mm | No./mm | mm | mm | mm | mm | Ohm/km | Amps |
| 1.5 | 22/0.3 | 0.6 | 0.9 | 10.80 | 4.80 | 12.10 | 14 |
| 2.5 | 36/0.3 | 0.7 | 1.0 | 13.00 | 6.00 | 7.41 | 18 |
| 4.0 | 56/0.3 | 0.8 | 1.1 | 15.20 | 6.10 | 4.95 | 26 |
| 6.0 | 84/0.3 | 0.8 | 1.1 | 17.00 | 7.20 | 3.30 | 31 |
| 10.0 | 140/0.3 | 1.0 | 1.2 | 23.00 | 9.30 | 1.91 | 42 |
| 16.0 | 226/0.3 | 1.0 | 1.3 | 27.00 | 10.80 | 1.21 | 57 |
| 25.0 | 354/0.3 | 1.2 | 1.5 | 33.00 | 13.00 | 0.780 | 72 |
| 35.0 | 495/0.3 | 1.2 | 1.6 | 37.00 | 14.60 | 0.554 | 90 |
| 50.0 | 703/0.3 | 1.4 | 1.7 | 44.00 | 17.00 | 0.386 | 115 |
| 70.0 | 356/0.5 | 1.4 | 2.20 | 51.00 | 20.00 | 0.272 | 143 |
| 95.0 | 475/0.5 | 1.6 | 2.40 | 58.50 | 12.00 | 0.206 | 165 |
